Hobby Master 1/72 Air Power Series
HA19022F-4EJ Kai Phantom II
37-8315, 301 Squadron, JASDF "Final Year 2020"
Starting in 1973 the Japan Air Self-Defense Force received 154 F-4EJ Phantoms that were based on the USAF F-4E. 138 of these aircraft were manufactured under license by Mitsubishi who produced the last F-4 Phantom II. Several changes were made to the F-4E to make it an F-4EJ. Basically it had any offensive weapons removed but eventually these restrictions were lifted and the aircraft were updated with missiles and the latest electronic equipment.
In March 2019 the 302nd Hikotai was disbanded with their F-4EJs going to the last Phantom squadron, the 301st Hikotai. One of the F-4Ejs was 37-8315 that was produced as c/n 4206/M015. The fate of the 302nd would also happen to the 301st in 2020 when the last F-4s would fly for Japan and would be replaced by the F-35. To mark the 301st disbanding F-4EJ 37-8315 was given a special paint scheme titled “Go for it!! 301 SQ”. The 301st mascot is a type of frog found locally at Hyakuri AB.

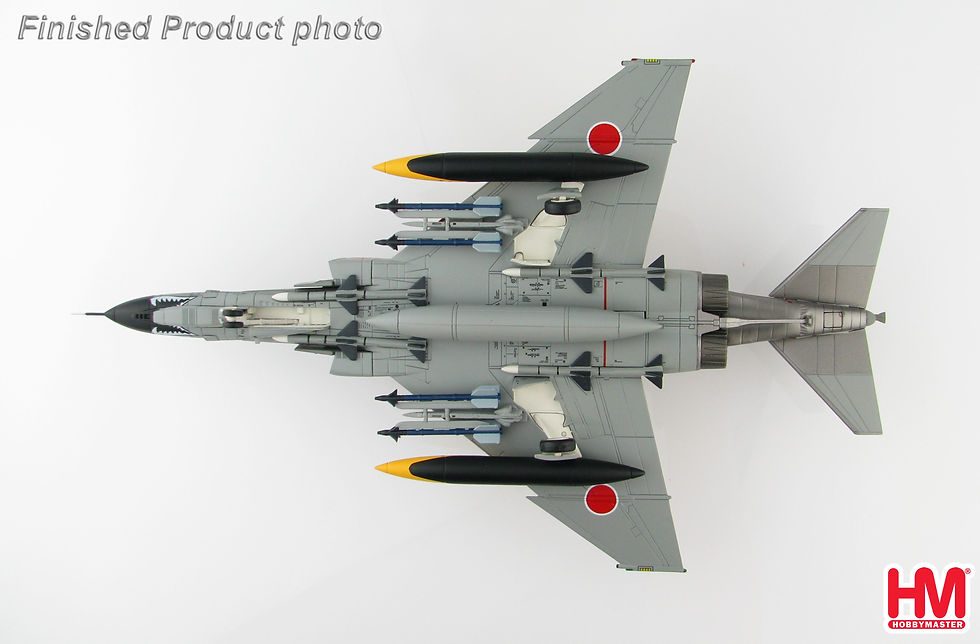

Hobby Master HA19022, F-4EJ Kai Phantom II 37-8315, 301 Squadron, JASDF, 1:72
They are virtually identical except for the restricted equipment:
This included removal of the in-flight refueling receptacle that was later
retrofitted, no leading edge slats, ground attack control equipment such as
weapons and bomb delivery systems and the addition of modern electronic
equipment including a data link system and radar warning receiver. Most or
all this equipment was eventually reinstalled.Number Built: F-4E - 5,195 / F-4EJ - 154 with 138 built in Japan under license.
Interesting trivia:
Each aircraft has 54,197 feet of wiring and 643,000 fasteners holding it
together.Engines:
2 X General Electric J79-GE-17 turbojets, 11,870 lb.s.t dry, 17,900 lb.s.t. with
afterburner.Performance:
Maximum speed - 1430 mph at 36,000 feet (Mach 2.21), 914 mph at sea
level (Mach 1.19).
Cruising speed - 585 mph.
Landing speed - 158 mph.
Initial climb rate - 61,400 feet per minute.
Service ceiling - 62,250 feet.
Combat ceiling - 59,600 feet.
Combat range - 595 miles.
Normal range - 1,100 miles.
Maximum range – 1,885 miles with maximum external fuel.Weights:
Empty - 29,535 pounds.
Gross - 40,562 pounds.
Combat weight - 38,019 pounds.
Maximum takeoff weight - 61,651 pounds.Dimensions:
Wingspan - 38 feet 5 inches.
Wing area - 530 square feet.
Length - 63 feet 0 inches.
Height - 16 feet 6 inches.Fuel:
Maximum internal fuel in the fuselage tanks - 1364 US gallons (up to block
40) or 1225 US gallons (block 41 and beyond). An additional 630 gallons of
fuel could be carried in internal tanks inside the wings.
Maximum external fuel - 600 US gallons in a centerline tank carried
underneath the fuselage.
Plus 370 US gallons in each of two tanks carried underneath the outer wing
pylons.
Total fuel load – 3,334 US gallons (up to block 40) or 3,195 US gallons (block
41 and beyond).Armament:
1 X 20-mm M61A1 cannon with 639 rounds.
4 X AIM-7 Sparrow semi-active radar homing air-to-air missiles in semi-
recessed slots in the fuselage belly.
2 to 4 X AIM-9 Sidewinder infra-red homing air-to-air missiles carried under
the wings on the inboard pylons.
A total offensive load of up to 16,000 pounds could be carried on the
centerline and four under-wing hard-points.
